epa-countdown-to-inventory-lead-pipes
The EPA requires all 50,000 community water systems to
complete and submit inventory of their lead service lines.

The deadline is October 16, 2024, at 11:59:59.

services

SERVICES

Our quality standards and years of service continue to offer
some of the most talented field and technical personnel in the industry.

Water and Sewer Leak Detection AND Lead Detection

A simple Electro Scan fact — pipe defects that leak water also leak electricity. Our proprietary technology can detect leaks whether or not water leaks are occurring at the time; not possible with any other currently available evaluation method. Using Electro Scan, municipal sewer utilities and sewer contractors can determine accurate location, measurement, and flow of potential defects within a pipe — essential for any cost-effective pipe repair, renewal, or replacement project. Now with Swordfish, we are also able to provide Lead Detection services in service lines.

Certify: Lining, Repairs, New Installs

Include Electro Scan in your condition assessment program and we’ll create a wet-weather event from within your pipes! Electro Scan finds defects, whether or not the defect is actively leaking at the time of inspection. Our low voltage conductivity probe travels through pipes at 45-60 feet per minute, defects are automatically located and measured in gallons per minute! Results are immediate, require no third-party data interpretation, and it’s normal practice for us to scan several thousand feet per day with a small crew!

Equipment Integration

With Electro Scan field production of 2,000 to 4,000 feet per day and better accuracy than CCTV, you may want to retrofit your CCTV Van with a new Electro Scan Reel. Our Probes can be customized to an Agency’s preferred manufacturer’s controller, winch, and reel. If you have interest in either a complete Electro Scan Van build or retrofit, give our office a call and we’ll send out an itemized budgeting guideline based on your specific requirements.

products

PRODUCTS

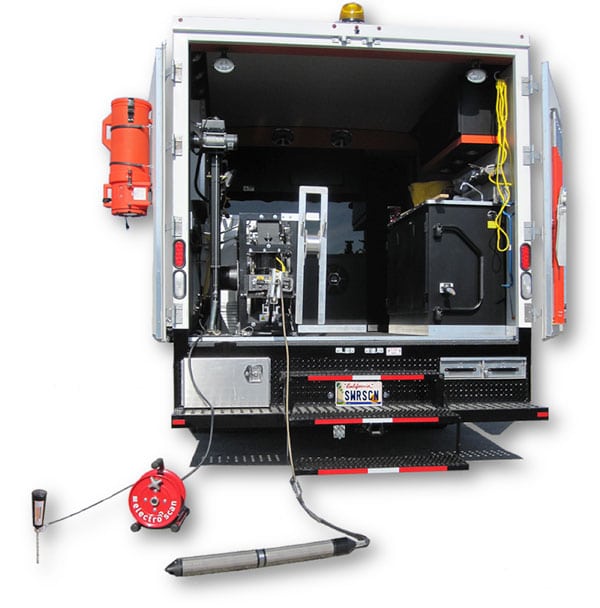

Electro Scan Truck

swordfish

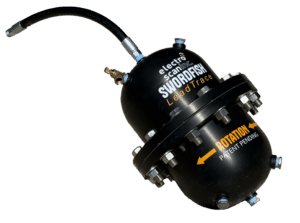

SWORDFISH

Combined lead detection and leak location in one unit

Lead Pipe Detection

World’s first hand-held buried lead pipe detection tool. Using an auto-fed cable and low-voltage conductivity probe, Swordfish automatically identifies lead pipes. Readings are transmitted in real-time to Electro Scan’s Critical H20 cloud application, with results independently verified using 3M lead test kits for 100% verification of lead pipe.

Conductivity

Based on Electro Scan’s patented machine intelligent technology, developed in accordance with the American Water Works Association, Manual M77, Water Main Condition Assessment, to measure electric resistance using low-voltage conductivity to locate buried lead pipes.

Operation

Live insertion, no digging. Up to 80ft survey length. Pipe Diameters 0.5” to 3” (13mm to 75mm) Meter to main, meter to house inspection. Cable feed system maintains selected speed with its rotating action allowing users to navigate multiple 90° pipe bends.

SWORDFISH

Swordfish Insertion



Features: Buried lead pipe detection
Pipe Diameters: 0.5” to 3” (13mm to 75mm)
Pressure: Range from ZERO to 10 bar (145 psi)
Temperatures: 41-86o F, 5-30o C
Common Launch Points: Meters, Curb Boxes, and more
Pipe Lengths Per Survey: Up to 80ft (25m) from opening

Electro Scan, Inc. SWORDFISH Single Unit Pricing

Learn More



swordfish-se

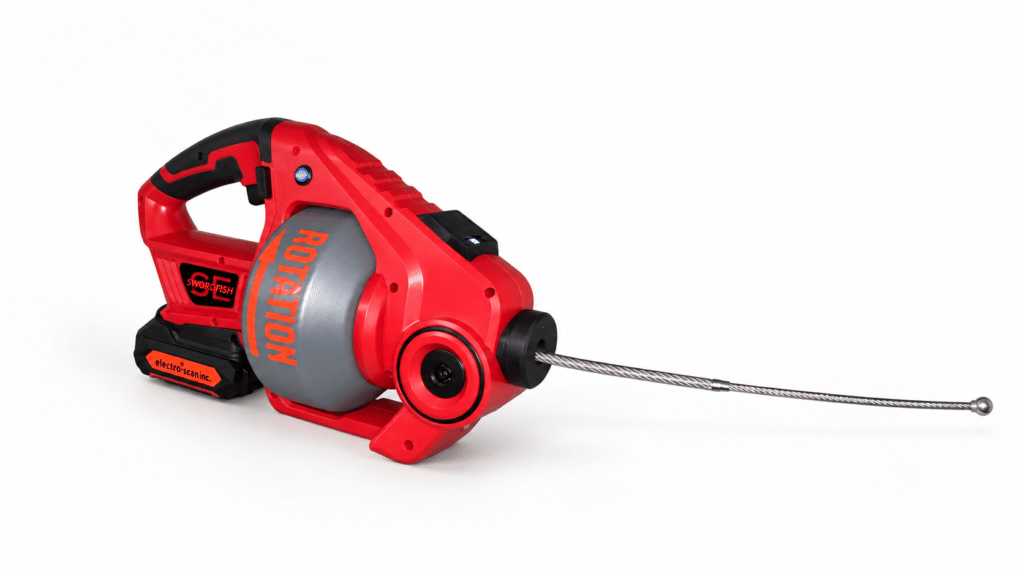

SWORDFISH SE

Combined lead detection and leak location in one unit

Lead Pipe Detection

World’s first hand-held buried lead pipe detection tool. Using an auto-fed cable and low-voltage conductivity probe, SWORDFISH SE automatically identifies lead pipes. Readings are transmitted in real-time to Electro Scan’s Critical H20 cloud application, with results independently verified using 3M lead test kits for 100% verification of lead pipe.

Conductivity

Based on Electro Scan’s patented machine intelligent technology, developed in accordance with the American Water Works Association, Manual M77, Water Main Condition Assessment, to measure electric resistance using low-voltage conductivity to locate buried lead pipes.

Operation

For extreme internal geometry, change in pipe diameter, and multiple 90-degree bends. Live insertion, no digging. Up to 100ft survey length. Pipe Diameters 0.5” to 3” (13mm to 75mm) Meter to main, meter to house inspection. Cable feed system maintains selected speed with its rotating action allowing users to navigate multiple 90° pipe bends.

SWORDFISH

SWORDFISH SE Components

SWORDFISH SE Insertion



Features: Buried lead pipe detection
Pipe Diameters: 0.5” to 3” (13mm to 75mm)
Pressure: Range from ZERO to 10 bar (145 psi)
Temperatures: 41-86o F, 5-30o C
Common Launch Points: Meters, Curb Boxes, and more
Pipe Lengths Per Survey: Up to 100ft (30 M) from opening

2023 SWORDFISH and SWORDFISH SE Comparison Chart

Learn More



es-sixtwozero

ES-620

The ES-620 is our flagship probe designed for 6 - 30 Inch Diameter Gravity Mains.
It is utilized by agencies and contractors worldwide.

Proven

For use on VCP, AC, PVC, RCP, CIPP, and other non-metallic pipes.


Locates

Locates defects and points of infiltration within 0.4 inches.


Measures

Measures leaks in gallons per minute (GPM).


Integrates

Integrate with existing CCTV vehicle (Cues, Aries, IBAK, IPEK, Rausch).

ES-620 Probe

Learn More

es-threeeight

ES-38

The ES-38 is our Lateral work horse. It was designed specifically to
find leaks in small diameter pipes and is utilized by contractors of all size.

Proven

For use on VCP, AC, PVC, RCP, CIPP, and other non-metallic pipes.


Locates

Locates defects and points of infiltration within 0.4 inches.


Measures

Measures leaks in gallons per minute (GPM).

ES-38 Probe and Reel

Learn More

critical-sewers-two

Critical Sewers

Locate, Measure, Analyze, and Report Leaks like never before!

Critical Sewers

Immediate

View results minutes after your crew scans a pipe, moves on to the next, or leaves the job site. Conduct quality control remotely. Track daily production.

Analyze

With Critical Sewers, you have automated analysis driven reporting at your fingertips. Make well informed rehabilitation decisions faster than ever.


Report

Easily create Summary and Detail level reports your team can review when making decisions to replace or rehabilitate a pipe.
